ColorStar Impressions HD Custom Shapes Floor Mat

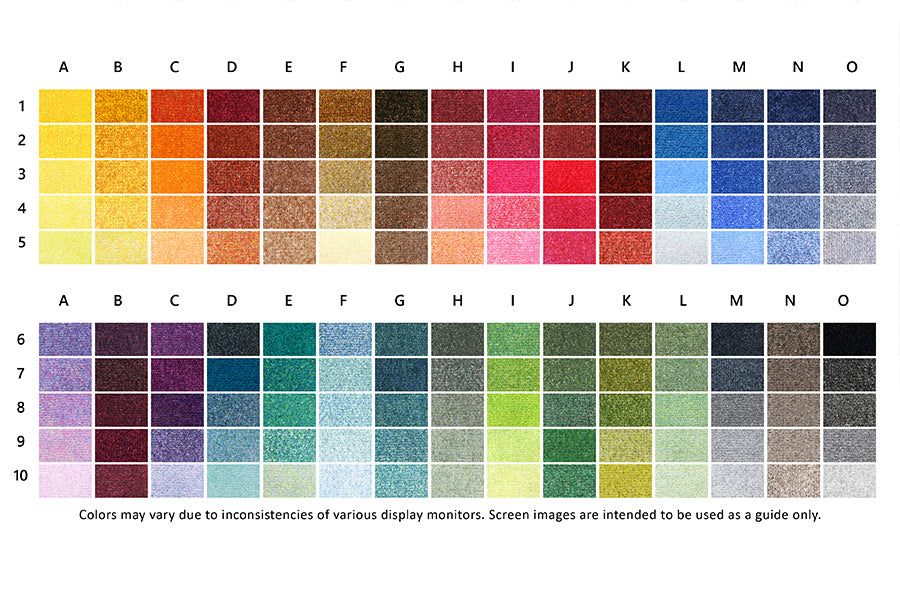

ColorStar Impressions HD Custom Shape logo mats are produced using a layering process of color.  Colors are matched to our standard palette of 150 colors.  Please refer to this product's Price List for details on the one-time PMS color matching set-up fee. A maximum of 4 PMS colors may be matched per design.

Minimum Text Height: 1" for serif fonts and 1/2" for sans serif fonts
Minimum Line Thickness: 1/8" except for white & light colors which should be at least 1/4"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Light background colors should be avoided due to their tendency to show dirt on the mat more than a darker or neutral tone.  We also advise against the use of screens, tints, and transparencies in the design because they are not easily converted to our color palette.

SURFACE
Material: PET (polyethylene terephthalate) printed/disperse-dyed yarn
Weight: 32 ounces/yard2
Construction: Cut pile
Substrate: Freudenberg LUTRADUR® polyester spunbond non-woven fabric 3.8 ounces/yard2 (130 grams per square meter)

BACKING OPTIONS
Material: Nitrile rubber - smooth or universal cleated
Thickness:
90-mil (body thickness 90-mil; border thickness 90-mil)

Overall Mat Thickness: 3/8 inch (0.375")

STANDARDS & TESTING

• Passes BS 4790 (1987) determination of the flammability of textile floor coverings
• Certified high-traction by the National Floor Safety Institute (NFSI)
• Passes flammability tests EN ISO 11925-2 (2010) and EN ISO 9239-1 (2010)
• AATCC Stain Resistance Pile Floor Covering: Grade 10, no staining

Custom shape mats are available in sizes up to 6' wide and 23' long.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

ColorStar Impressions HD Custom Shape mats can be cleaned in several different ways:

• They can be commercially laundered (see Laundering Instructions); though be mindful that laundering is not recommended for all shapes.
• Vacuumed regularly (daily in high-traffic areas; weekly in lower-traffic applications)
• Cleaned with an extractor, or hosed off as necessary to remove heavy soil
• Hang to dry

Mats should always be dry before they are placed back in service.

ColorStar Impressions HD Custom Shape Logo mats can be commercially laundered.  Proper laundering will prolong the life of the mat by preventing the buildup of soil and soap residue.

ColorStar Impressions HD Custom Shape Logo mats are manufactured using PET Yarn.  PET is a type of polyester that needs to be processed using the proper chemistry to obtain optimal results. When PET products are exposed to oils, the yarn has an affinity to retain these oils.  We would recommend starting with 2 oz. of detergent per cwt., and 1 oz. of alkali per cwt, and add 4 oz. of hydrogen peroxide. The level of chemicals required will depend on the type of accounts you service.  Please consult with your chemical supplier if you have additional questions or concerns.

1. Flush 2-3 minutes, medium water level, 100-120 degrees F (38-49 degrees C)
2. Flush (optional) 2-3 minutes, medium water level, 100-120 degrees F (38-49 degrees C)
3. Break 5-10 minutes, high water level, 100-120 degrees F (38-49 degrees C)
4. Rinse 2 minutes, high water level, cold
5. Rinse 2 minutes, high water level, cold
6. Extract (low speed) 1-2 minutes
7. Shake out (rotate wheel at wash speed with drain open) 1 minute
8. Extract (high speed max - 250 Gs) 3-5 minutes
9. Dry 5-10 minutes, 180 degrees F (82 degrees C) basket temp.
10. Cool down 5 minutes
11. Lay mats flat following removal from washer or dryer. Allow to cool before rolling.

For heavy soil mats, increase temperature to max 120-140 degrees F (49-60 degrees C).Break should not exceed pH of 9.5; use low pH non-ionic detergents. Do not over-dry mats; basket temperature of dryer should not exceed 180 degrees F (82 degrees C).If mats are not dried, final rinse can be increased to 140 degrees F (60 degrees C). This will reduce moisture retention following extraction.
