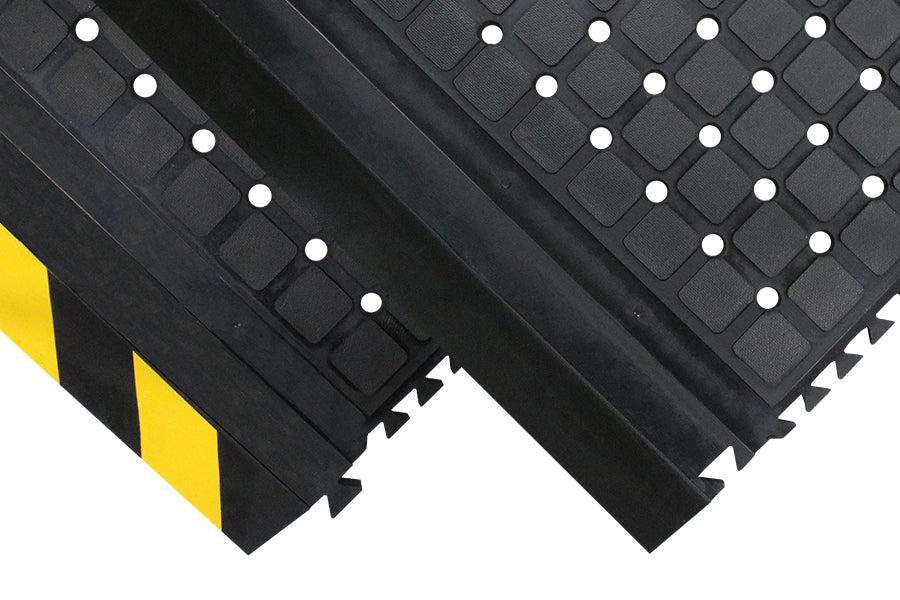

Hog Heaven Linkable Drainable Tiles

$299.99
Shipping calculated at checkout.
Link

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

Hog Heaven Drainable Linkable Tiles provide a customizable matting solution for large areas (long runs).  They offer outstanding anti-fatigue qualities and perform in various wet environments including those where oil, grease, and chemicals may be present.

  • Comfortable - High-density, closed-cell nitrile rubber provides excellent anti-fatigue qualities to help reduce the pain and fatigue associated with standing for long periods of time
  • Safe - Drainage holes allow liquid to flow through; beveled edges provide a safe transition from floor to mat and will not crack or curl
  • Durable - Nitrile rubber provides years of useful life and can withstand the rigors of almost any industrial environment, including heavy cart traffic
  • Versatile - Welding safe; grease/oil proof; chemical resistant; ESD rating of electrically conductive

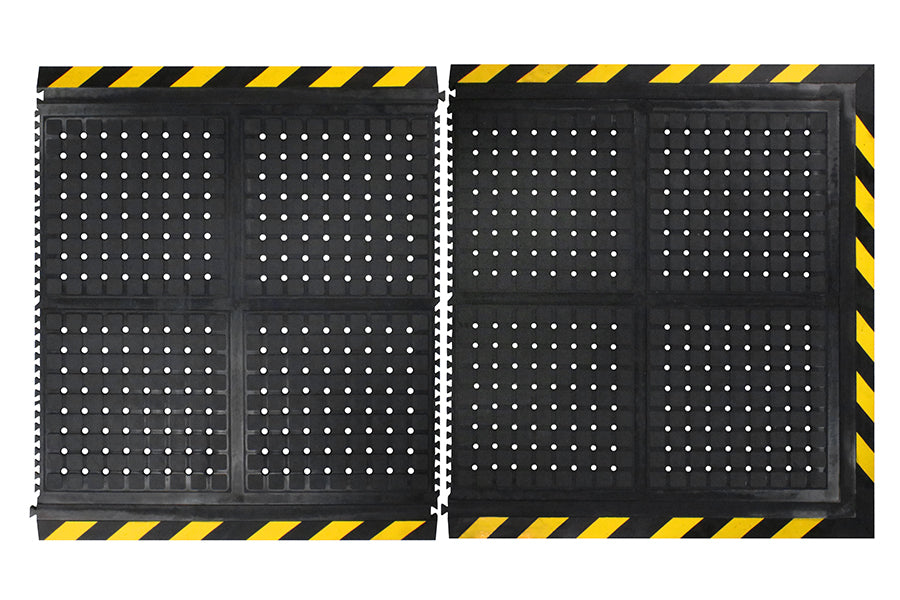

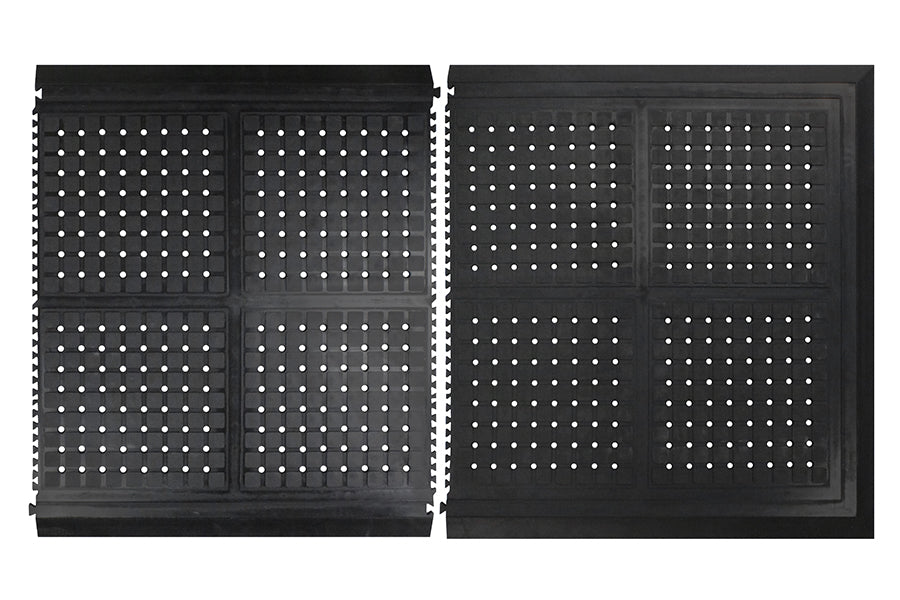

  • Mats are 3/4" thick and available with black or OSHA-approved yellow borders
  • End: 39.875" x 43.75"
  • Middle: 36" x 43.75"

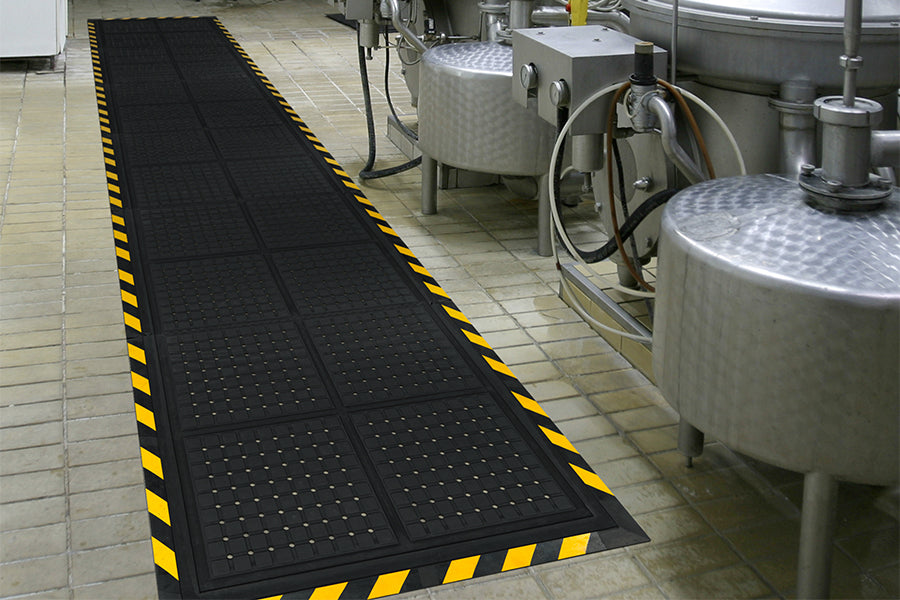

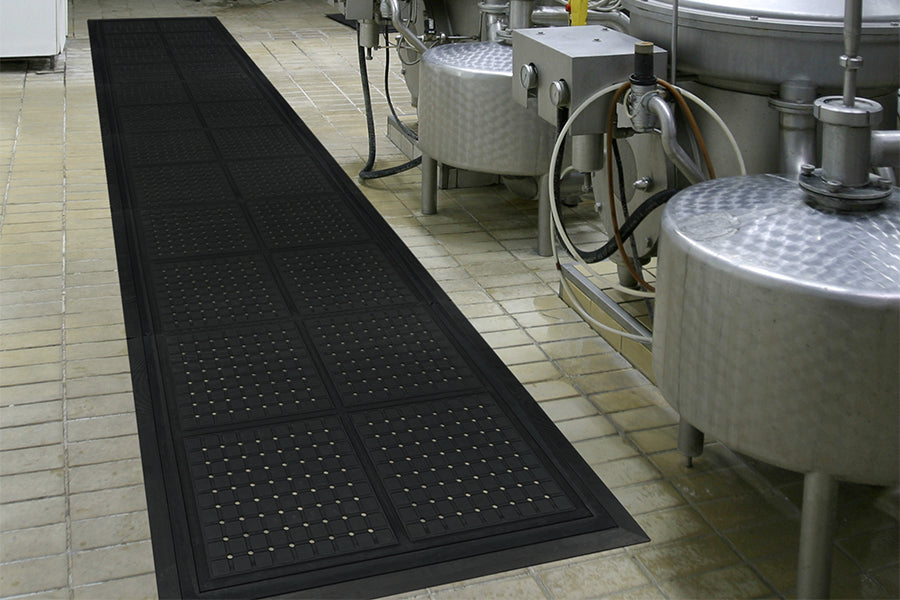

Recommended Uses

Recommended for indoor use in industrial settings such as manufacturing facilities, distribution centers, machine shops, and areas where grease, oil, or chemicals may be present.

Material Specifications

SURFACE
Material: Nitrile rubber

CUSHION
Material: Closed-cell nitrile/PVC-blended foam
Density: 7.0 - 9.0 lbs/ft3

Overall Mat Thickness: 3/4 inch (0.75")

STANDARDS & TESTING

  • Passes flammability standard BS-4790 Metal nut Method
  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • ESD Rating of electrically conductive
  • Compression Deflection:
        42.3% at 20 psi
        56.8% at 40 psi
  • ASTM C 1028-96 static coefficient of friction:
        Dry 0.74
        Wet 0.77

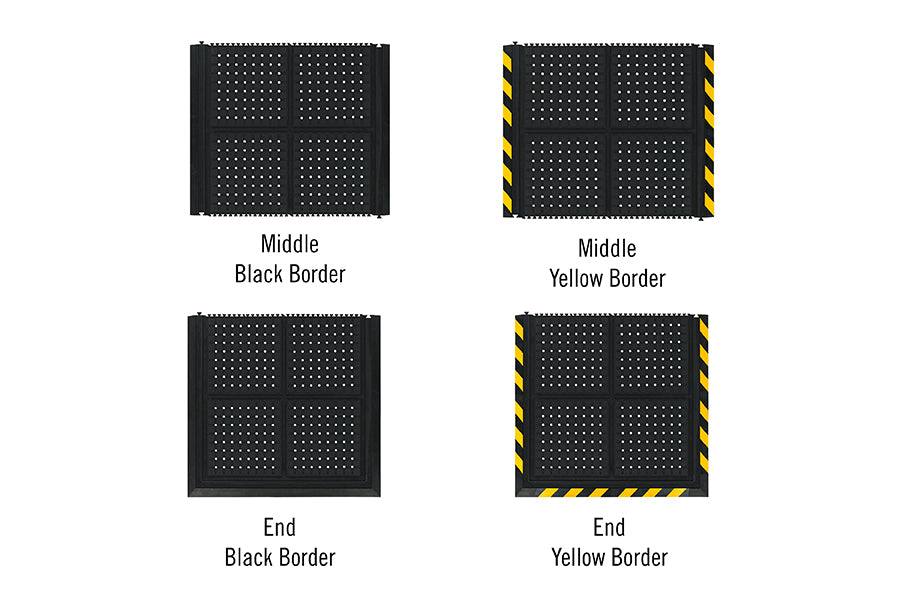

Available Sizes

End: 39.875" x 43.75"
Middle: 36" x 43.75"

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

Care/Cleaning Instructions

Hog Heaven Linkable mats and tiles can be cleaned using the instructions below:

  • Scrub with a deck brush (as needed) using a detergent with a neutral pH
  • Rinse with a hose or pressure washer
  • Hang to dry

Mats and tiles should always be dry before they are placed back in service.
